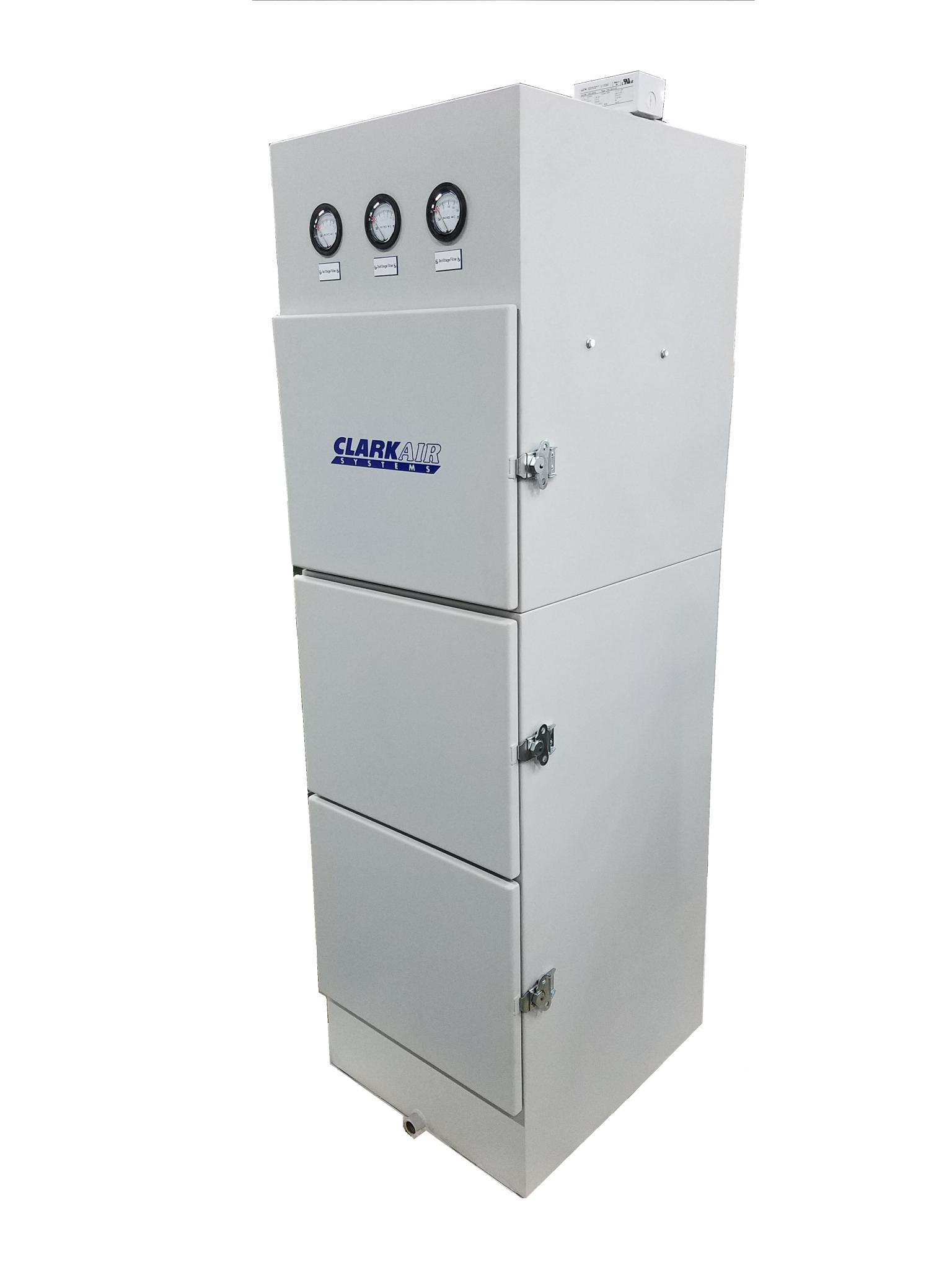

OMW 800 oil mist air cleaner

$6,900.00

The OMW 800 machine oil mist industrial air cleaner provides superior reliability and efficiency

Concept of Operation

  • Contaminated air is drawn into the inlet below the first stage filter where the majority of the oil particles are trapped
  • When the stage 1 filter reaches a state of saturation the oil droplets coalesce and drain down into the sump located below the filter
  • collected oil is automatically pumped away for re-use
  • air passes through a second stage filter, where finer mist and smoke particles are filtered out and coalesced
  • third stage is a non-wicking final filter which captures the remaining smallest particulate down to 0.30 microns
  • The clean Air is then discharged from the top of the collector into the facility

Description

OMW 800 machine mist air purifier                                                      https://clarkair.com/contact/

A source capture system for oil mist and smoke

Features

•Source Capture
•Self Draining Self Cleaning
•Recycles Expensice Fluids
•1-4 Year Filter Life
•Handles High Pressure Fluid
•Handles Smoke and Mist
•Standard with VFD
•Standard with Fluid Pump
•No Ladders for Maintenance
•(4) Different CFM Models
