Insulated Booths

High Capacity Finishing.

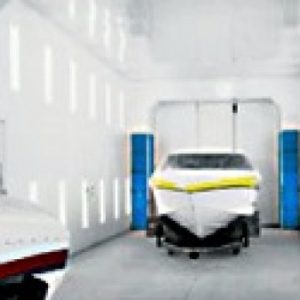

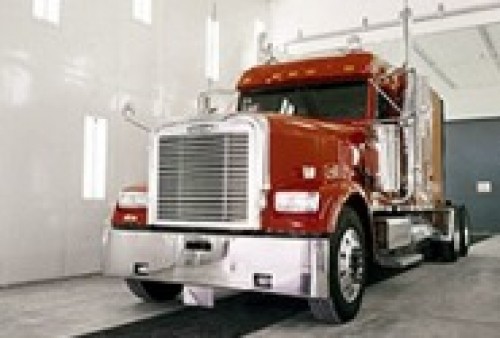

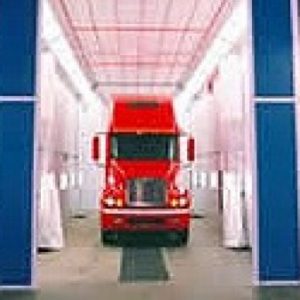

Downdrarft Spray Booths for Truck and Large Equipment Finishing.
Truck and Large Equipment spray booths are designed, engineered and manufactured to meet the needs of the transit, recreation, agriculture, construction, large equipment, and trucking industry. They are also ideal for commercial vehicles like large vans, similar to the Dodge Sprinter line of vehicles.

Global Finishing Solutions paintbooths provide a safe and efficient working environment for your finishing operation along with the latest technology.


Standard Features:

  • Downdraft airflow
  • Precise temperature most fuel efficient
  • Air flow management
  • Contamination control
  • Multi-filtered air
  • High production environment
  • Recirculating cure or forced air cure available
  • Pre-coated booth finish
  • 30% more illumination
  • High quality finishes
  • T-8 color corrected tubes


  • Paint Booth configurations: Drive Thru or Solid Back, Split Cabin, or combination
  • Custom engineered for special applications
  • Indoor or outdoor spray booth types

Quality Construction:

  • White pre-coated galvanized G-90 steel panels
  • Structural components ranging from 11 to 14 gauge steel
  • Precise tolerance engineering
  • Wall mounted 6-tube ETL listed Class 1, Division 2 fluorescent light fixtures with color-corrected T-8 tubes
  • Equipment installation by certified technician

Flexible Modular Design

  • Multiple width and length combinations allow for expansions from 24′ to unlimited lengths

Code Complience:

  • Global Finishing Solutions High Capacity Spray Booths are designed to meet or exceed OSHA and other codes including NFPA 33, 70, 86, 91, 101, NFCC, CEC, BOCA, UFC and IFC
