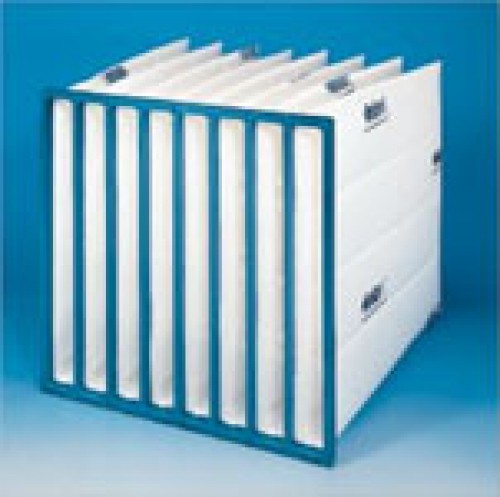

High Efficiency Pocket Filters

The unique, self-supporting design of Viledon pocket filters prevents collapsing – even at extremely low air flow rates. This ensures continuous, consistent air flow at all times for maximum filter efficiency. The wedge-shaped design of individual pockets also guarantees fuller media utilization than in competitive filters.

Description

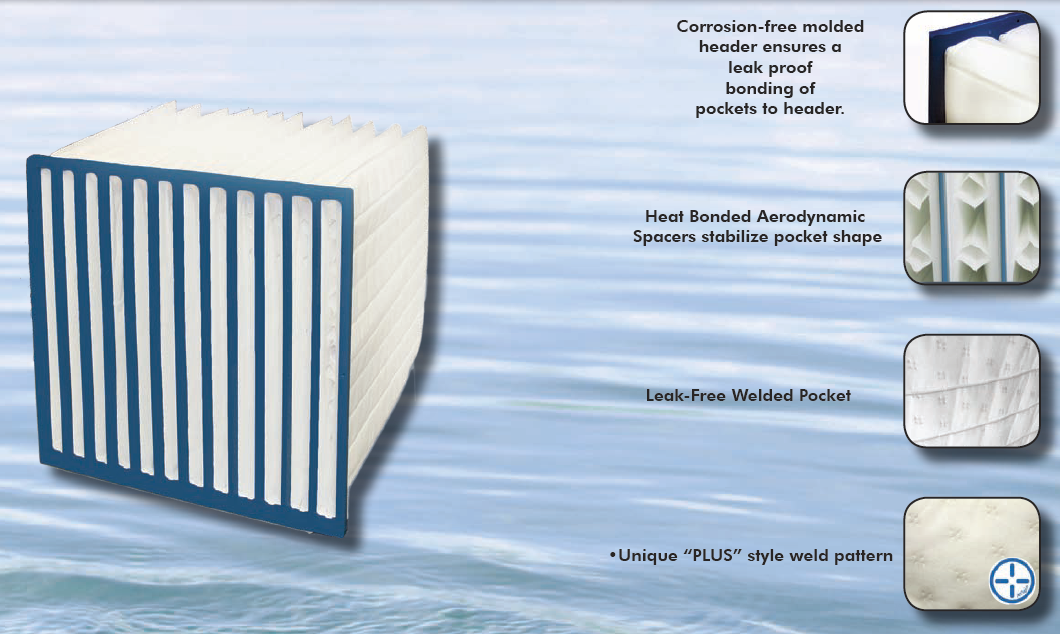

Self-supported, Wedge-shaped Pockets

The unique, self-supporting design of Viledon pocket filters prevents collapsing – even at extremely low air flow rates. This ensures continuous, consistent air flow at all times for maximum filter efficiency. The wedge-shaped desgin of individual pockets also guarantees fuller media utilization than in competitive filters.

Patented Welded Spacers

Controlled air flow within the filter is crucial for peak performance. The unstructured pockets in some competitive filters restrict air flow. Viledon’s aerodynamic, welded flutes channel air efficiently, resulting in lower pressure drop and 100% media utilization.

Non-touching Pockets

Viledon’s superior design prevents media surfaces from coming into contact with each other. This permanent separation ensures even loading of dust particles and eliminates a major cause of filter failure in competitive filters.

Welded Seams

Viledon uses thermally welded seams exclusively in its air filtration products. Welded seams are leak-free and prevent dust particles from reentering the air stream during peak operation of the filter system. Stitch holes in some competitive filter competitive filters allow dust particles to escape back into the air flow, bypassing the filtration process entirely. Even the white glue strip fails to prevent the leak.

Injection Molded Headers

Viledon pocket filters are made with injection molded, polyurethane headers. Strong and lightweight, Viledon headers will never corrode and are extremely resistant to moisture and chemicals. During the injection molding process, the filter pockets actually become embedded in the polyurethane – forming a permanent, leak-free bond.




Performance

Unit

MF70

MF90

T98

MF95

Rated Air Flow

CFM

1968

Initial Resistance

“w.g.

.23

.36

.38

.50

Max Temperature

°F

160° Peaks @ 200°

Final Resistance

“w.g.

1.50

1.50

1.50

1.50

MERV@1968

1-16

13

14

15

16

ASHRAE 52.1 Equivalent Efficiency*

%

85-90

90-95

>95



UL900 Classification

Class 2

Burst Strength

“w.g.

>12
